Form Builder

Cubedrive's form builder helps the customer to create forms easily with the drag and drop method. After the form is created, customers can create the flow and apply the business logic. Form builder allows business get daily requirements up and running in no time; no programming is required.

There have the following options to create a form:

• Create from scratch
• Auto generate form based on the uploaded Excel file
• Create from the uploaded PDF file
• Create from JSON data

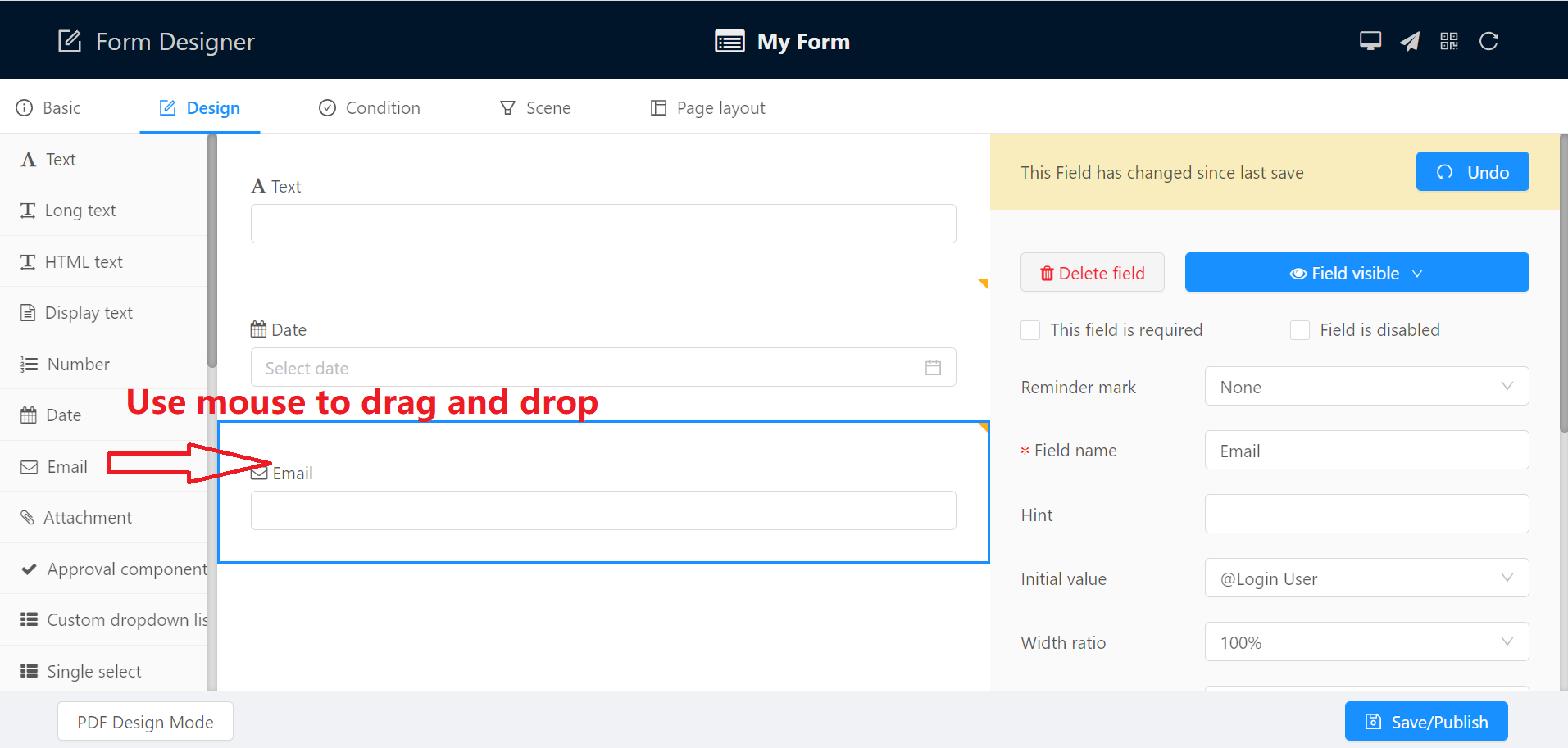

Create from scratch

To create a new form, click the + Create application / New Form button after you login system.

Cubedrive supports a list of field types. Drag the field, drop it into the center panel and configure it, a field is generated in the form. Currently, the following field data types are supported.

• Number
• Text
• Date
• Phone
• Email
• URL
• Checkbox
• Radio button
• Dropdown list
• Attachments
• Currency
• Percent
• Long text / HTML text
• Signature
• Approval component
• Master details table
• Related data
• Access other form API
• Formula

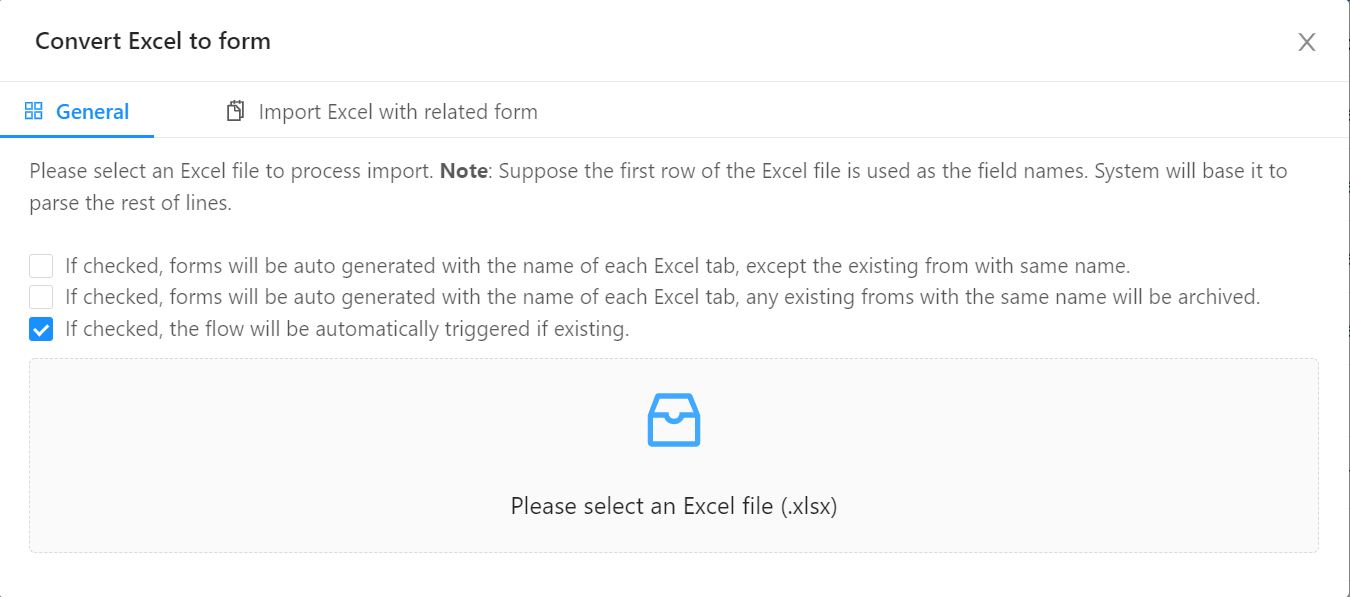

Auto generate form from the uploaded Excel file

To create a new form, the user can also click the + Create application / Convert Excel to form button after you login system.

Create from the uploaded PDF file

Click + Create application button to create app, click PDF design mode button to upload pdf and drag field to pdf.

Create from JSON data

Click the "+” to Create Application" -> "From JSON" button, customers can paste the copied form JSON data and generate a new form. This gives users a quick way to generate a form/flow from the existing form/flow. Customers can get JSON data from the Form Setting window.
